RS-485 is still a workhorse in industrial automation and building control systems for reliable, long-distance serial communication. But when devices are acting up or data appears to disappear into thin air, how do you identify the issue? An RS-485 sniffer is a dedicated software or hardware tool that behaves like a detective, recording every byte crossing the bus so you can diagnose and repair problems quickly.
If you are sceptical about which software to use to ensure that there is no loophole in testing or functioning of the system, then you are at the right place. In this article, we will discuss about rs485 sniffer its features and why you should rely on it for your projects.

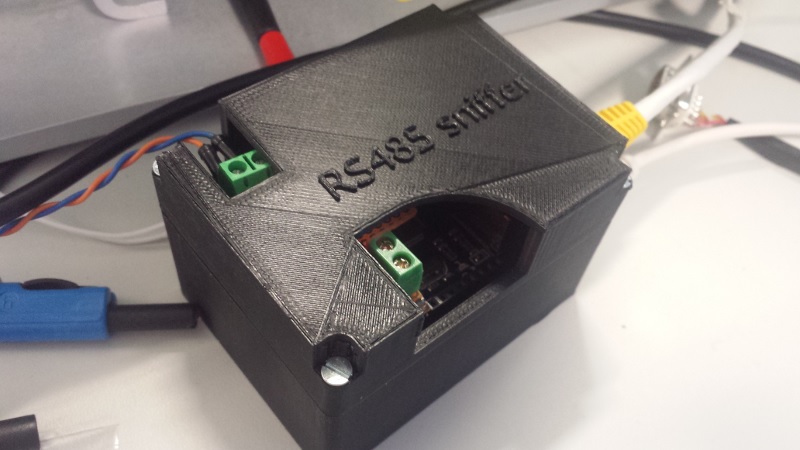

What Is an RS-485 Sniffer?
RS-485 is a sniffer that works on electrical signals passing along a two-wire or four-wire bus but is passive. Rather than injecting commands or disrupting the bus, it captures all the communication between slave and master devices. Imagine it as sitting unobtrusively in a meeting room, writing down each question and response without ever interjecting during the speakers.
With that recorded data, you can replay sessions, timestamp messages, and examine raw bytes or decoded commands. That transparency makes conjecture an unneeded thing, showing you if your PLC is sending the proper queries, if your sensor is responding properly, or where noise and collisions are resulting in lost data.
Why Do You Need an RS-485 Sniffer?
Troubleshooting Communication Errors
If a sensor does not respond or a motor controller misses commands, an RS-485 sniffer tells you precisely which side of the problem lies. Are requests mangled? Is the checksum incorrect? Did two devices talk simultaneously? A clean record of each frame aids you in pinpointing the offender.
Optimizing Network Performance
RS-485 networks usually link dozens of devices. Examining bus traffic, you can identify bottlenecks in devices speaking too often, or long periods of inactivity. Equipped with this knowledge, you can tweak polling intervals or rearrange your network topology for smoother performance.
Validating Protocol Compliance
Most industrial systems are based on common protocols such as Modbus RTU. A sniffer not only captures raw hex data but can also decode it into human-readable commands: “Read Holding Register 0x002A.” This simplifies it to easily check that each device is following the protocol specification to the letter.
Logging and Audit Trails
For critical systems such as HVAC controls, power distribution, or safety interlocks—having a record of communication can be crucial for compliance and troubleshooting. A sniffer that logs data for hours or days provides you with a complete audit trail, so you can correlate events with system changes or environmental conditions.
An RS-485 sniffer is not a necessity, it’s essential for anyone who’s designing, repairing, or testing industrial communication systems. By receiving, decoding, and examining all the packets on your system, you get the clarity to troubleshoot quickly and keep systems running. Spend the money on a good sniffer tool, and you’ll have fewer hours wasting time tracking down phantom errors and more time crafting tough, robust solutions.
